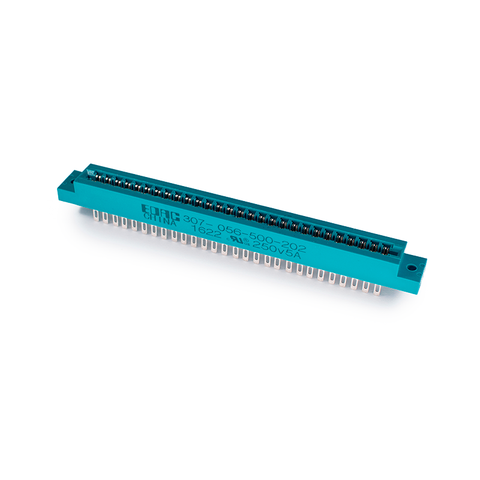

Edge Connector - 0.156" (3.96mm) - EDAC

SKU : EC-56P-E

Weight : 30 g (1.06 oz)


  • Sale
  • Regular price $13.99
  • 10 In stock



Series: 307 | Part Numbers: 307-036-500-202, 307-044-500-202, 307-056-500-202

Datasheet PDF 36 POS - Datasheet PDF 44 POSDatasheet PDF 56 POS

307 Series card edge connector with wire hole type contacts in a double row formation, reading both sides of the daughter board.

FEATURES / SPECIFICATIONS
    • Contact Spacing: 0.156" (3.96mm)
    • Contact Termination Type: Wire Hole
    • Accepts 0.062" (1.57mm) Nominal Thickness P.C. Board
    • Accepts between Contact and In-Contact Polarizing Keys
    • RoHS Compliant UL Certified
    • Insulator Material: UL 94V-0 Thermoplastic Polyester
    • Insulator Color: Green
    • Contact Material: Copper Alloy
    • Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
    • Contact Dimensions: 0.087" x 0.282" (2.21mm x 7.16mm)
    • Contact Thickness: 0.013" (0.33mm)
    • Contact Resistance: 10 milliohms maximum
    • Current Rating: 5A Continuous
    • Withstand Voltage: 1800VAC rms at sea level between adjacent contacts
    • Insulation Resistance : 5000 Megaohms minimum
    • Operating Temperature: Operating Temperature: -40°C to +105°C
    • Insertion Force: 16oz (4.45N) maximum per contact pair when tested with 0.070" (1.78mm) thick gauge
    • Withdrawal Force: 1oz (0.28N) minimum per contact pair when tested with 0.054" (1.37mm) thick gauge
